A Horizontal Centrifugal Casting Machine is a specialized piece of equipment used in the metal casting industry to produce cylindrical components by employing centrifugal force in a horizontal orientation. This method is particularly effective for creating parts with a uniform structure and high mechanical strength, making it ideal for applications requiring durable and reliable metal components.
 |  |

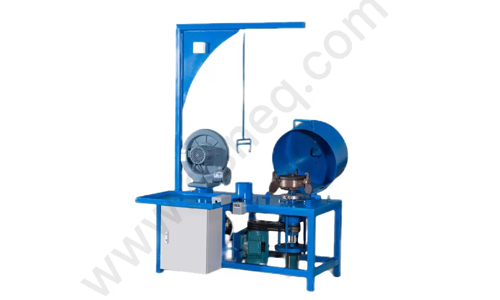

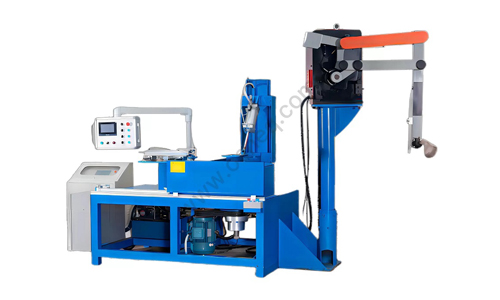

| Single-Station Manual Centrifugal Casting Machine | Single-Station Auto Centrifugal Casting Machine |
Horizontal Mold: The mold is positioned horizontally and rotates around its axis during the casting process. It's typically made from durable materials like steel or cast iron, designed to withstand the high forces and temperatures involved.
Centrifugal Force: As the mold spins at high speeds, centrifugal force pushes the molten metal against the mold walls, creating a dense and defect-free casting with a uniform grain structure.
Molten Metal Pouring System: The system is designed to introduce molten metal into the spinning mold in a controlled manner, ensuring even distribution and minimizing turbulence.
Cooling System: After the metal has been cast, controlled cooling is applied to solidify the metal, ensuring the final product has the desired mechanical properties and dimensions.
Drive Mechanism: A motor or drive system is responsible for spinning the mold at the necessary speed, which can be adjusted based on the size and type of the casting being produced.
Pipes and Tubes: Frequently used in the production of pipes, tubes, and hollow cylinders, where uniform wall thickness and high structural integrity are critical.
Bushings and Sleeves: Ideal for casting bushings, sleeves, and other cylindrical components used in heavy machinery and automotive industries.
Bearing Races: Produces bearing races with a high degree of precision and uniformity, which are essential for smooth operation and longevity.
Gear Blanks: Used to cast gear blanks that require subsequent machining to achieve the final gear shape.
High Quality and Precision: The centrifugal force eliminates impurities and gas pockets, resulting in high-quality castings with minimal defects.
Uniform Wall Thickness: The process ensures consistent wall thickness throughout the casting, reducing the need for additional machining.
Efficient Production: Capable of producing large quantities of cylindrical components with high efficiency, making it cost-effective for mass production.
Versatility: Suitable for casting a wide range of metals and alloys, including steel, iron, aluminum, copper, and bronze.
Mold Preparation: The mold is preheated, and sometimes a refractory coating is applied to prevent the metal from sticking to the mold.
Spinning the Mold: The mold is rotated horizontally at a predetermined speed.
Pouring Molten Metal: Molten metal is poured into one end of the rotating mold. Centrifugal force pushes the metal outward to form the cylindrical shape.
Solidification: The metal cools and solidifies, taking the shape of the mold with a uniform wall thickness.
Removal of the Casting: Once cooled, the casting is extracted from the mold, and any necessary finishing operations, such as trimming or machining, are performed.
Dual-Layer Casting: Some horizontal centrifugal casting machines allow for the casting of dual-layer or composite materials, where different metals or alloys are cast together to produce components with varied properties.
Variable Speed Control: Machines can be equipped with variable speed control to accommodate different materials and casting requirements.
Horizontal centrifugal casting machines are widely used in industries such as automotive, aerospace, oil and gas, and heavy machinery manufacturing. It is also a key machine in our rice cooker production line. They are favored for their ability to produce high-quality, precision components with consistent properties, making them a cornerstone of modern metal casting technology.
