Types of Rotors Used in Ceiling Fans

Ceiling fans are a staple in many homes and offices for cooling and air circulation. One of the key components that determine the performance and efficiency of a ceiling fan is its rotor, often referred to as the "motor rotor." Understanding the different types of rotors used in ceiling fans can help you choose the best one based on your needs. Below, we'll discuss the most common types of rotors used in ceiling fans and their features.

1. Synchronous Rotor

The synchronous rotor is one of the most widely used types in ceiling fans, particularly in AC (alternating current) motor fans. Here's an overview:

• **Construction**: Synchronous rotors typically consist of a steel core with copper windings. These rotors are powered by a synchronous motor, which operates at a constant speed relative to the AC power frequency.

• **Operation**: The rotor in a synchronous motor rotates in sync with the frequency of the AC supply voltage. For example, in countries with a 60 Hz power supply, the rotor would complete 60 revolutions per second.

• **Advantages**: Synchronous rotors are known for their durability, energy efficiency, and quiet operation. They are typically found in more traditional ceiling fans.

• **Disadvantages**: One downside is that synchronous rotors require a stable power supply and might not work as efficiently in areas with power fluctuations.

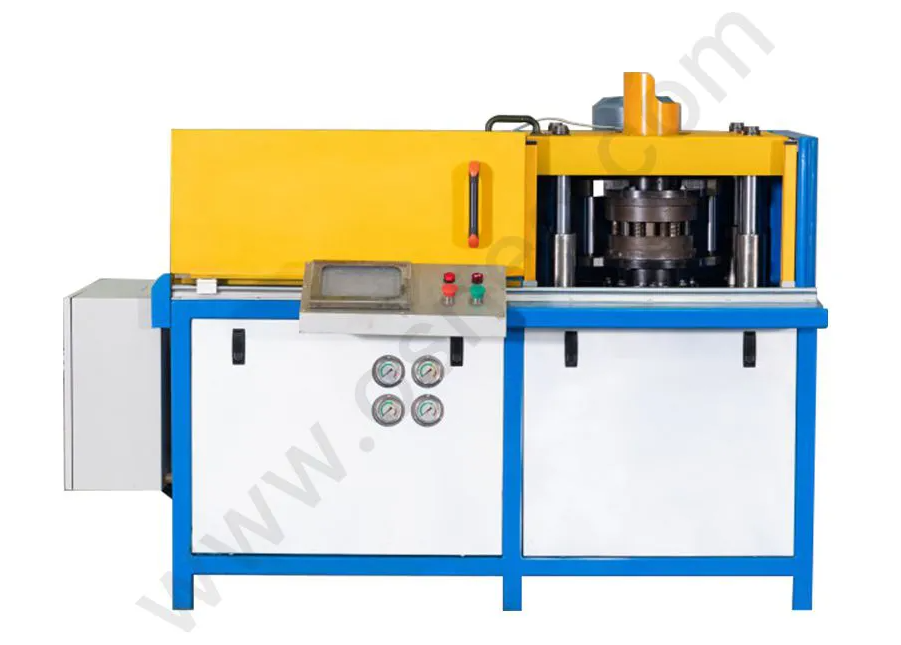

 Ceiling Fan Rotor Casting Machine

2. Capacitor-Start Induction Rotor

The capacitor-start induction motor (CSIM) is another commonly used rotor type in modern ceiling fans. It is often used in more energy-efficient and high-performance models. Here’s a look at its key characteristics:

• **Construction**: This rotor uses a capacitor that is connected in series with the motor windings to improve the starting torque. The rotor itself is typically made of laminated steel for durability and efficiency.

• **Operation**: When the motor starts, the capacitor provides a phase shift, giving the rotor more initial torque to turn the fan blades effectively. Once the motor reaches a certain speed, the capacitor is disconnected from the circuit.

• **Advantages**: This type of rotor is energy-efficient and offers good starting torque, making it ideal for larger ceiling fans or fans in spaces where a higher speed is required for air circulation.

• **Disadvantages**: While more efficient, this rotor type can be more expensive due to the additional components like the capacitor.

3. Permanent Split Capacitor (PSC) Rotor

The Permanent Split Capacitor (PSC) motor is another type of rotor commonly used in ceiling fans. It is similar to the capacitor-start motor but with a slight difference in how it operates:

• **Construction**: The rotor in a PSC motor is permanently connected to the capacitor, which provides the necessary phase shift during both start-up and continuous operation.

• **Operation**: The PSC motor is designed to run at a consistent speed and is more efficient than traditional motors in maintaining torque. This rotor type is ideal for ceiling fans that need continuous operation at a steady speed.

• **Advantages**: The PSC rotor provides consistent performance, smooth operation, and enhanced energy efficiency. It is quieter compared to other rotor types and can run continuously without overheating.

• **Disadvantages**: While highly efficient, PSC motors are generally found in mid-range ceiling fans and may not offer the same high starting torque as capacitor-start induction motors.

4. Electronically Commutated (EC) Motor Rotor

The Electronically Commutated (EC) motor rotor is the most advanced technology in ceiling fan motors. It’s commonly used in premium, high-efficiency ceiling fans due to its impressive energy savings and performance:

• **Construction**: EC motors combine the efficiency of a DC motor with the reliability of an AC motor, thanks to an integrated electronic circuit that controls the motor’s speed and performance. The rotor in this motor is typically made of permanent magnets, which allows for smooth and efficient operation.

• **Operation**: EC motors use electronic controls to regulate the speed and efficiency of the motor. Unlike AC motors, which are tied to the power frequency, EC motors can operate across a wide range of speeds without compromising performance.

• **Advantages**: EC motors are extremely energy-efficient, offering up to 70% more efficiency than traditional AC motors. They are also quieter, produce less heat, and offer variable speed control, making them ideal for energy-conscious users.

• **Disadvantages**: The main drawback of EC motors is their higher initial cost compared to conventional motors. However, the energy savings over time can offset this cost.

5. DC Motor Rotor

DC motor rotors are found in modern ceiling fans, especially those designed for energy efficiency. These rotors use a direct current (DC) power supply instead of alternating current (AC), which offers several advantages:

• **Construction**: DC motors in ceiling fans use permanent magnets for the rotor, similar to EC motors. They are typically lighter and more compact than AC motors.

• **Operation**: DC motors work by converting AC power from the outlet into DC power using an internal rectifier. The rotor then uses this direct current to operate, providing precise speed control and better energy efficiency.

• **Advantages**: DC motors are highly efficient, produce less heat, and are quieter than traditional AC motors. They also offer variable speed settings and are ideal for users seeking to reduce energy consumption.

• **Disadvantages**: DC motor fans tend to be more expensive initially than AC motor fans, although their energy savings can justify the higher upfront cost.

Conclusion

The type of rotor in a ceiling fan directly impacts its performance, efficiency, and noise level. Whether you’re looking for a budget-friendly option or a high-end energy-efficient fan, it’s important to choose a ceiling fan with a rotor that best suits your needs. From synchronous and capacitor-start induction motors to the more modern EC and DC motor rotors, each offers unique advantages. Understanding these types can help you make an informed decision when purchasing a ceiling fan for your home or office.

Osno Ceiling fan rotor casting machine is a special aluminum casting equipment used for ceiling fan rotor molding, easy to operate, high qualification rate, high efficiency, every 8 seconds can produce a product, is three times the efficiency of ordinary aluminum casting equipment.
