Energy-Saving Natural Gas Aluminum Melting Furnace

Basic Information

product name	Energy-saving natural gas aluminum melting furnace	burner	No.1
serial number	See product data sheet	energy	GAS / NATURAL / LPG
After-sales service	One year	control method	automatic
Temperature control meter quantity	2	Packing	Wooden box or film package
Electric box	1 piece as standard	crucible	Standard with furnace
Customs Registration Code	44289600P9	Production Capacity	20 units/month

Application areas

Our energy-saving natural gas aluminum melting furnace is suitable for melting and insulation operations in die casting, sand casting, gravity casting, centrifugal casting and other industries.

Features and Benefits

Using silicon carbide graphite crucible, it does not add iron, does not stick to aluminum, has fast heat conduction, and has a service life of more than half a year.
The outer shell is made of 5mm thick steel plate and the bottom is 10mm channel steel, with a solid structure.
It adopts high-temperature open flame burner, which has the advantages of reasonable design, advanced technology, sufficient combustion, energy saving, etc.
Combustion control adopts imported program controller, air-fuel proportional valve, solenoid valve, pressure gauge, air pressure switch, pressure regulating valve, etc. Safety control adopts front and rear purge functions. High-power burners adopt large and small fire control to ensure Safety.
The heat accumulator is made of SUS310S high-temperature resistant stainless steel, which converts the waste heat of the flue gas into clean air at about 320°C, effectively saving energy.
The temperature control watch adopts a touch temperature control watch with digital display, precise temperature control and automatic constant temperature device.7. A high-pressure vortex air pump fan is used to provide air volume, and clean air is provided through the heat accumulator to support combustion, effectively saving energy.
The interior is made of high-temperature-resistant special-grade high-alumina bricks and refractory castables. It has good thermal insulation effect and the furnace shell temperature does not exceed 50 degrees.
Compared with conventional gas furnaces, one ton of aluminum consumes about 30% less energy.

Product parameters

model	Burner conversion power (Kw / h)	Melting capacity( Kg / h )	Product Size(L * W * H reclaiming table mm)	Packing size (mm)
RQ -400	230	80 -100	1600*1000	1600*1000
RQ -500	320	110 -130	1600*1160	1600*1160
RQ -600	320	130 - 180	1600*1310	1600*1310
RQ -800	450	180 -230	1700*1410	1700*1410
RQ -1000	450	230 -280	1700*1510	1700*1510

Note: As our company is constantly developing and updating, the size and weight may change slightly, please refer to the actual situation at the time of shipment.

Pictures of device details

	Air gas proportional valve		The electromagnetic valve

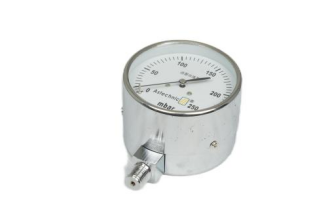

	Ignition high voltage package		Gas pressure gauge.
	burner		Vortex fan
	Gas filter		Pressure Switch
	310 stainless steel heat exchanger		Furnace cover lifting button
	Pressure reducing valve		Ball valve
