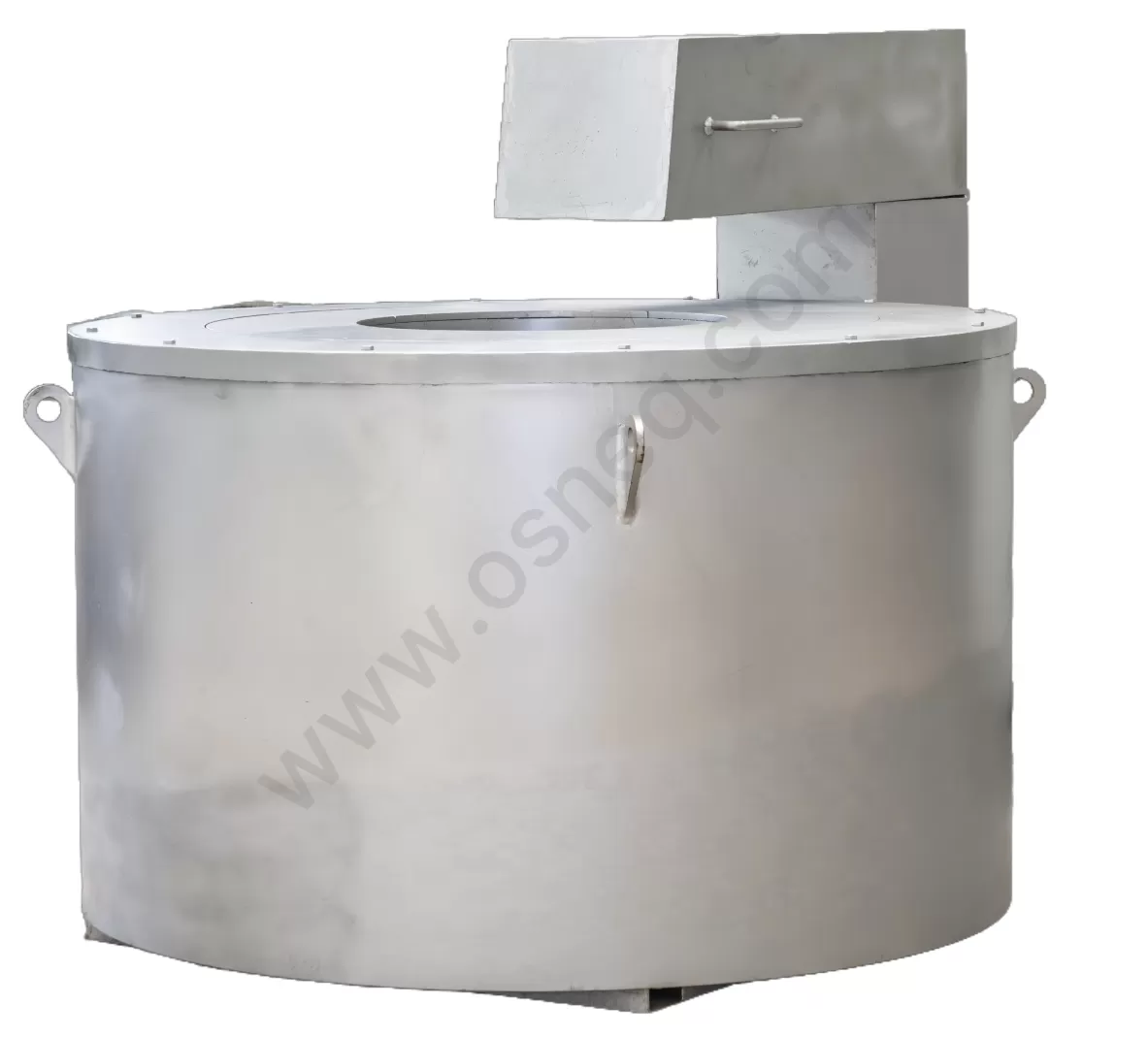

Natural gas aluminum melting furnace

Product Description

Conventional natural gas aluminum melting furnace refers to using natural gas or liquefied petroleum gas as energy to melt aluminum ingots or recycled aluminum materials and keep them warm . Then the molten aluminum is used for further processing. It has the advantages of fast melting speed, precise temperature control, and few equipment failures.

Inquire Now Next Product

Basic Information

product name	Conventional natural gas aluminum melting furnace	Burner	Derrote
model	See product parameter sheet	energy	GAS/NATURAL/LPG
After-sales service	one year	control method	automatic
Number of thermostats	2	Packing	Wooden box or film package
electrical box	1 piece standard	crucible	Comes standard with furnace
Customs registration code	44289600P9	production capacity	20 units/month

Application Areas

Our natural gas aluminum melting furnace is suitable for melting and holding operations in industries such as die casting, sand casting, gravity casting, centrifugal casting, etc.

Features and benefits

Use silicon carbide graphite crucible, no iron added, no aluminum sticking, fast heat conduction, service life of more than half a year.
The outer shell is made of 5mm thick steel plate and the bottom is 10mm channel steel, with a solid structure.
The heating adopts imported Italian natural gas burner, which has full combustion, high heat utilization rate and a service life of up to five years.
The temperature control meter adopts a digital touch temperature control meter with precise temperature control and automatic constant temperature device.
The interior is made entirely of high-temperature resistant special-grade high-alumina bricks and refractory castables, with good thermal insulation effect, and the furnace shell temperature does not exceed 60 degrees.

Product Parameters

model	Burner conversion power (Kw / h)	Melting capacity( Kg / h )	Product Size(L * W * H reclaiming table mm)	Packing size (mm)
CG -300	150	50 - 60	1500*1000	1500*1000
CG 350	230	60 - 80	1500*1100	1500*1100
CG -400	230	70 -100	1500*1150	1500*1150
CG -500	320	110 -130	1600*1160	1600*1160
CG -600	320	130 -180	1600*1310	1600*1310
CG -800	450	180 -230	1700*1410	1700*1410
CG -1000	450	200 -230	1700*1510	1700*1510

Note: As our company is constantly developing and updating, the size and weight may change slightly, please refer to the actual situation at the time of shipment.

Pictures of device details

	Deli burner: integrated configuration		The electromagnetic valve
	air fuel proportional valve		pressure gauge

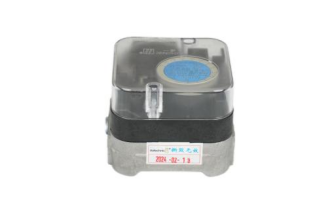

	Pressure Switch		Flue gas waste heat recovery
