Multi-Spindles Drilling Machine

Product Description

Gear automatic multi-axis tapping machine refers to a device that drives the multi-axis device under the drive of the V-belt and the turbine gear, and can drive multiple chucks at one time to tap multiple holes at the same time. The speed can be adjusted by the pagoda-shaped pulley, and the gear drives the multi-axis device to rise and fall. Then the kinetic energy is transferred to the chuck through the multi-axis device to achieve the purpose of drilling multiple holes at the same time, reducing labor intensity and improving work efficiency.


Basic Information


Before processing  → After processing


Before processing  → After processing

product nameGear automatic multi-axis tapping machinecontrol methodAutomatic/manual loading and unloading
modelOSN-4508/OSN-6516Energy SourceElectricity
After-sales serviceOne yearMaximum processed product diameter250mm (customizable)
Transmission typeV-beltMaximum tapping diameterM4-8 ~ M6-10 (customizable)
Up and down driveTurbine gearPackingWooden box or film package
Customs Registration Code44289600P9Production Capacity30 units/month

Application Areas

Our automatic multi-axis gear tapping machines are suitable for heating plates, ceiling fan upper and lower covers, and products that require multi-hole tapping.


Features and benefits

1.The frame is designed with carbon steel square tube welding, and is subjected to high temperature annealing and vibration to eliminate stress, ensuring that the frame is stable and does not deform.

2.Automatic operation is adopted, and the operation is simple.

3.The speed is adjusted by a pagoda-type pulley .

4.The tapping machine will not carry the workpiece when retracting, which improves work efficiency.

5.You only need to manually put the product into the fixture, and after one-button start, the machine will work automatically with high production efficiency.

6.The adjustable swing arm can freely adjust the tapping position within the effective range according to the hole position.

7.The tapping depth can be freely adjusted within the effective range according to the required processing depth.

8.The cooling water nozzle can be adjusted freely according to needs.

9.It can run at high speed for a long time and is strong and durable.

10.Supports customized drilling and tapping equipment of turntable type, slide table type, servo type, square multi-axis machine, and circular multi-axis machine.


Product parameters

nameModel OSN-4508Model OSN-6516
power supplyAC380V three-phase 50/60HZ (can be customized)
Spindle motor1.5kW2.2Kw
Spindle speed540/855/1440 r/min300/480/720 r/min
Product cooling methodwater coolingwater cooling
water pump motor120W120W
Adjustable stroke up and down of the machine head200mm300mm
Spindle diameter42mm70mm
Column outer diameter70mm85mm
Spindle Morse taperB16MT3
Effective tapping stroke40mm60mm
Number of machining axesM4-8 axisM6-10 shaft
working desk sizeL 600x W 80 0x H 19 0 0mm L7 00x W85 0x H200 0mm
Weight (kg)210240
Spindle center point to vertical beam end face200mm (customizable)250mm (customizable)

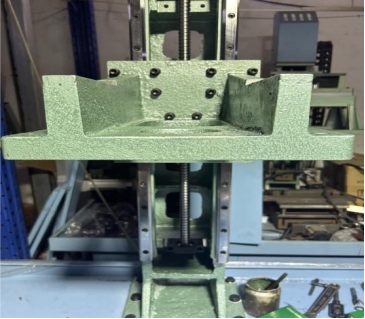

Accessories pictures

 image.pngimage.png image.png image.png
 image.png image.png image.pngimage.png
