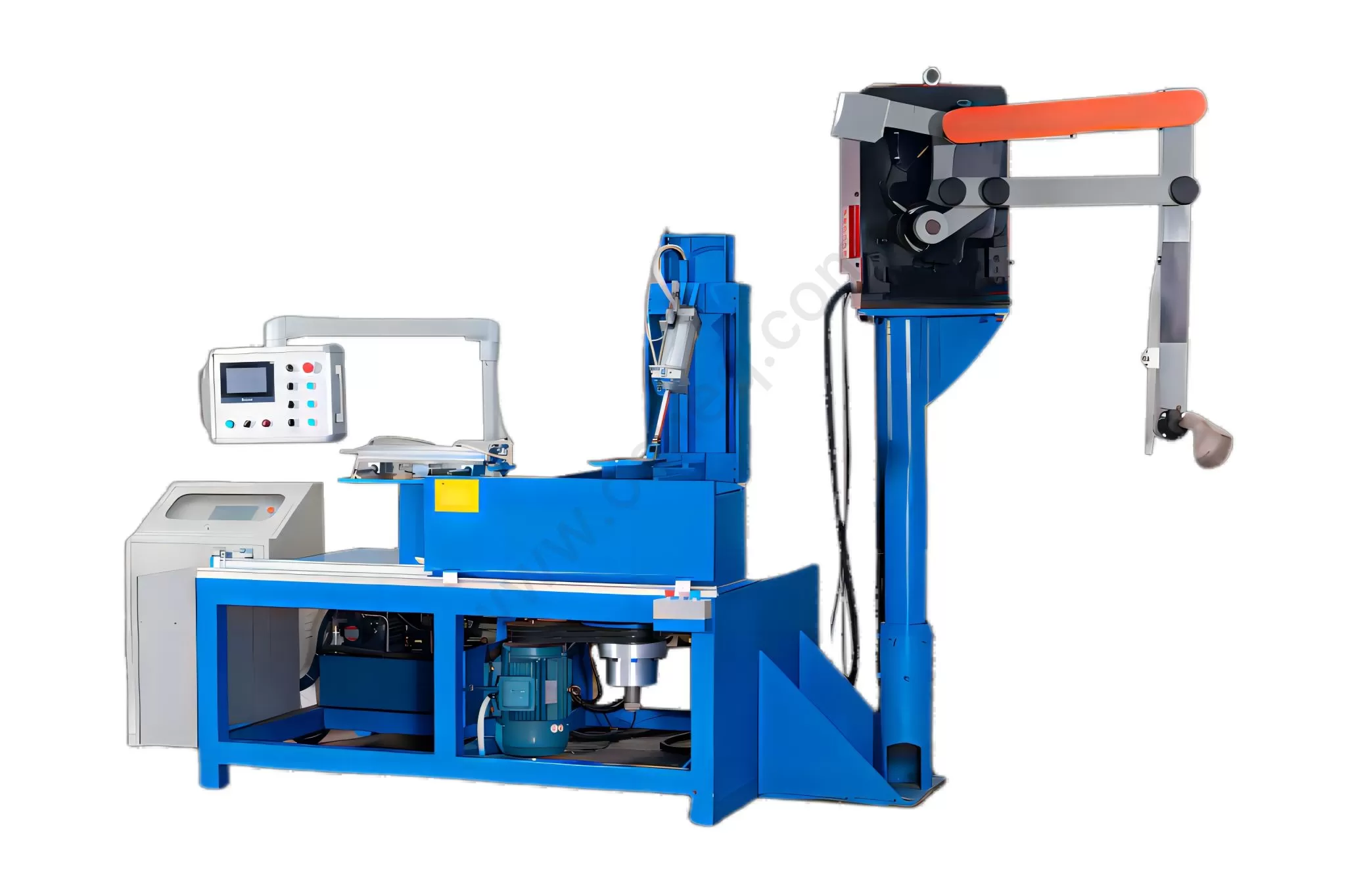

Rice Cooker Tubular Heater Winding Machine

Product Description

The automatic heating wire winding machine means that the machine can wind the heating wire into a spring shape according to the required coil diameter and the required number of turns before rolling it off to achieve the desired result. This machine uses PLC, touch screen, and high-speed encoder as control components, which can accurately control the winding resistance. As long as the required resistance and related parameters are set on the touch screen as required, winding can be performed automatically. After winding to the preset resistance , automatically cuts off and automatically clears, and repeats continuous work. This machine can adapt to the needs of different wire diameters and has high production efficiency. It will automatically shut down in case of line shortage, line breakage and reaching the preset output, etc.

Basic Information

product nameHeating wire automatic winding machinecontrol methodautomatic
modelOSN- 370Wenergy sourceElectric energy
After-sales serviceone yearMaximum processing wire diameter0.5mm (can be customized)
Transmission typeSpindle direct connectionMinimum processing wire diameter0.15mm (can be customized)
Cut off typeElectromagnet brokenPackingWooden box or film package
Customs registration code44289600P9production capacity20 units/month


Application areas

Our heating wire automatic winding machine is suitable for winding a variety of heating wires, and can also complete similar winding work.

Features and benefits

  1. Simple operation.

  2. Less cutting burrs.

  3. Preset resistance value (resistance of heating wire after winding).

  4. Preset production volume (automatically stops when the preset production volume is reached).

  5. Can store 10 groups of parameters for easy adjustment.

  6.  Automatically shut down when the line is insufficient or disconnected.

  7. Human-machine control, intuitive and convenient.


Product Parameters

nameModel/Specification
power supplyAC220V single phase 50/60HZ (customizable)
PLCXinjie
touchscreenXinjie
Spindle motor0.37Kw
Motor speed1400r/min (adjustable by variable frequency)
Pinch wheel motor90w (speed adjustable)
Cutting methodDouble stroke cylinder
Required air source0.5~0.8MPa
Wire winding diameter0.15~0.5mm
Wire winding inner diameterᴓ 1~ ᴓ 6mm (replaceable mandrel, customizable )
Adjustment methodBy length or resistance
volume750X650X1650mm
Weight (kg)175
