Single-Station Auto Centrifugal Casting Machine

Application Areas

Our single-station automatic casting machines are used for aluminum casting of rice cooker heating plates (one out of many), electric frying pans, ceiling fan upper and lower covers and similar products.


Basic Information

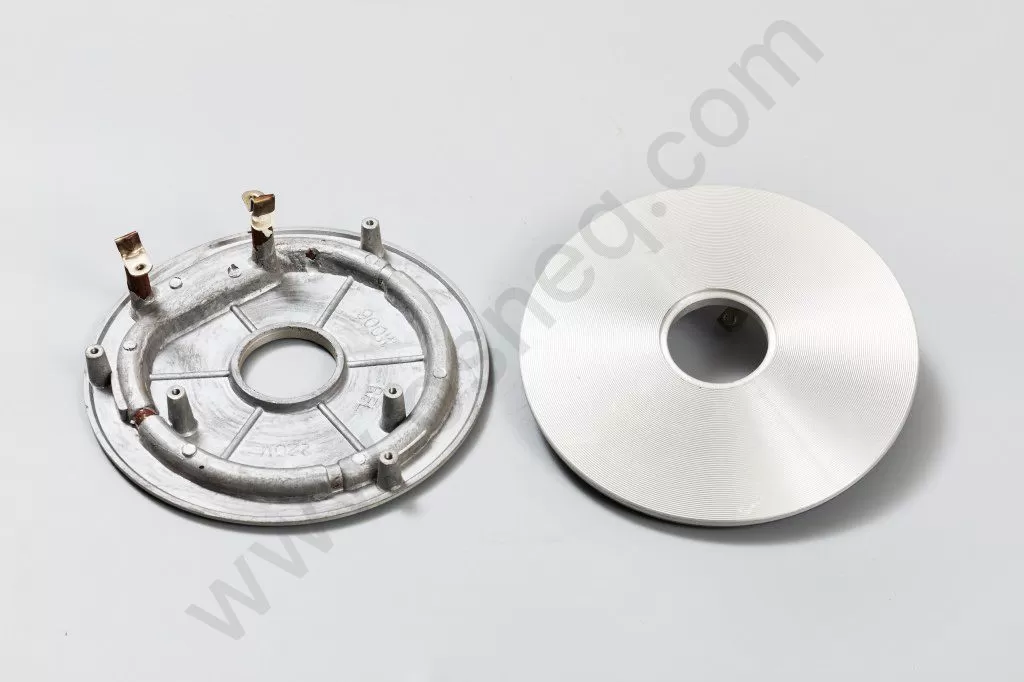

Before processing     →       After processing



product nameSingle station automatic casting machinecontrol methodPLC
modelOSN-A5Energy SourceElectricity
After-sales serviceOne yearMaximum processing product500mm(customizable)
Transmission TypeV-belt/Double-row chainMaximum mold rotation diameter800mm(customizable)
Turntable spindle driveservo motorProduct SizeL2500 × W1300 × H2500 mm
PackingWooden box or film packageWeight (Kg)About 1750KG
Customs registration code44289600P9production capacity20 units/month

Product Description

Single-station automatic aluminum casting machine refers to installing one set of aluminum casting molds on one workbench . The product diameter of a single set of molds can be up to 500mm. You can also make several products on this set of molds. The mold speed can be set by yourself. Fixed, the maximum speed reaches 1450r/min. The mold cover automatically opens and closes, and hydraulic force ejects the product. Safety door opens and closes automatically. Integrated with RV servo soup feeder , the aluminum water volume of the soup feeder can be set freely, with a maximum aluminum water scooping volume of 4.5kg/scoop. After completing the settings, just start it with one click, and the equipment can complete the aluminum casting work of a set of molds in 40 to 60 seconds . The work efficiency is 2 times higher than that of skilled manual operation. PLC + touch screen control, equipped with hydraulic automatic brake and manual mold cooling device (manually control the cooling time according to the mold temperature). The work is stable, and the mold can be replaced according to different products to achieve the purpose of one machine with multiple uses. This equipment can also be customized according to customers' different product needs. The equipment has reasonable design , solid frame, simple operation and maintenance, safety and reliability, and is suitable for applications where a single output is not too high .


Features and benefits

1.The frame is designed with carbon steel square tube welding, and is subjected to high temperature annealing and vibration to eliminate stress, ensuring that the frame is stable and does not deform.

2.It adopts Japanese Panasonic PLC control, equipped with easy touch screen, and is easy to operate.

3.The mold speed is up to 1450r/min, and the speed can be adjusted by the frequency converter.

4.The brake uses hydraulic brakes to implement rapid braking.

5.The rotary cylinder is used to automatically eject the product, saving operation procedures.

6.The integrated soup feeder reduces the labor intensity of workers in making aluminum soup.

7.The machine can automatically diagnose faults and provide multiple solutions.

8.You only need to manually insert the insert into the mold (if there is an insert), and after one-button start, the machine will work automatically with high production efficiency.

9.The mold speed and soup feeding amount can be set by yourself, the product qualification rate is high and the cost is saved.

10.Pneumatic safety door, automatic opening and closing.


Product Parameters

nameModel/Specification
power supplyAC380V three-phase 50/60HZ (customizable)
Gas source0.5~0.7Mpa
Control SystemJapan Panasonic PLC
touchscreen7-inch touch screen
Spindle motor4.0~7.5KW (depending on the size of the mold)
Frequency ConverterAdapt the inverter according to the motor power
Mold shaft speed0~1450r/min (adjustable by inverter)
Maximum processing diameter500mm (can be customized according to product)
Mold rotation diameter800mm
Mould opening and closing methodPneumatic mold opening and closing
Ejector CylinderRH150 × 30mm solid rotary cylinder
Soup machine arm motor0.75Kw Japanese Panasonic servo motor
Soup machine spoon motor0.4Kw Japanese Panasonic servo motor
Maximum soup volume per time4.5Kg


Product features

This equipment is mainly used for the casting of rice cooker heating plates ( one with multiple outputs ) , electric woks , upper and lower covers of ceiling fans and similar products . It relies on the centrifugal force brought by the high-speed rotation of the spindle to quickly form products .

The speed is adjustable, the maximum speed can reach 1450r/min, the rotation time is adjustable, the mold cover automatically opens and closes, the safety door opens and closes automatically, and the hydraulic force automatically ejects the product.

Integrated with RV servo soup feeder , the aluminum water volume of the soup feeder can be set freely , with a maximum aluminum water scooping volume of 4.5kg/scoop.

 After completing the settings, just press one button to start, and the device will automatically complete a working cycle. The equipment has reasonable design , solid frame, simple operation and maintenance, safety and reliability, and can complete the aluminum casting work of one mold within 40 to 60 seconds .

The work efficiency is 2 times higher than that of skilled manual operation . PLC + touch screen control, equipped with hydraulic automatic brake and manual mold cooling device ( manually controlled cooling time according to mold temperature ) .

 The work is stable, and the mold can be replaced according to different products to achieve the purpose of one machine with multiple uses .

 This equipment can also be customized according to customers' different product needs .



Single station automatic casting machine technical parameter table

namecategoryModel/Specification
Casting machine control boxPLCMitsubishi FXIS-30MT three + frequency converter
power systemSpindleAccording to mold size, 4.0 ~ 7.5 K w/380V spindle motor + frequency converter
Processing rangeThe maximum diameterThe maximum diameter of the product is 50 0mm ( multiple products can be produced in one mold )
Mold cooling
manual spray
Spindle speed
100-1450r /min ( Inverter speed regulation )
Braking methodHydraulic brakesHydraulic brakes
Hydraulic station
4.0 K w/380v oil pump motor + VP40 oil pump
Mould opening and closing method
Hydraulic + pneumatic mold opening
Ejector Cylinder
MOB 80 × 50mm Cylinder
safety door
Pneumatic opening and closing
Soup machine arm motor
0.75 Kw Japanese Panasonic servo motor
Soup machine spoon motor
0.4 Kw Japanese Panasonic servo motor
The maximum amount of soup given in a single time
4.5kg
physical dimensionLength × width × height                  L2500 × W1300 × H2500 mm
weightkgAbout 1750kg


Detailed drawing description

pictureillustrate

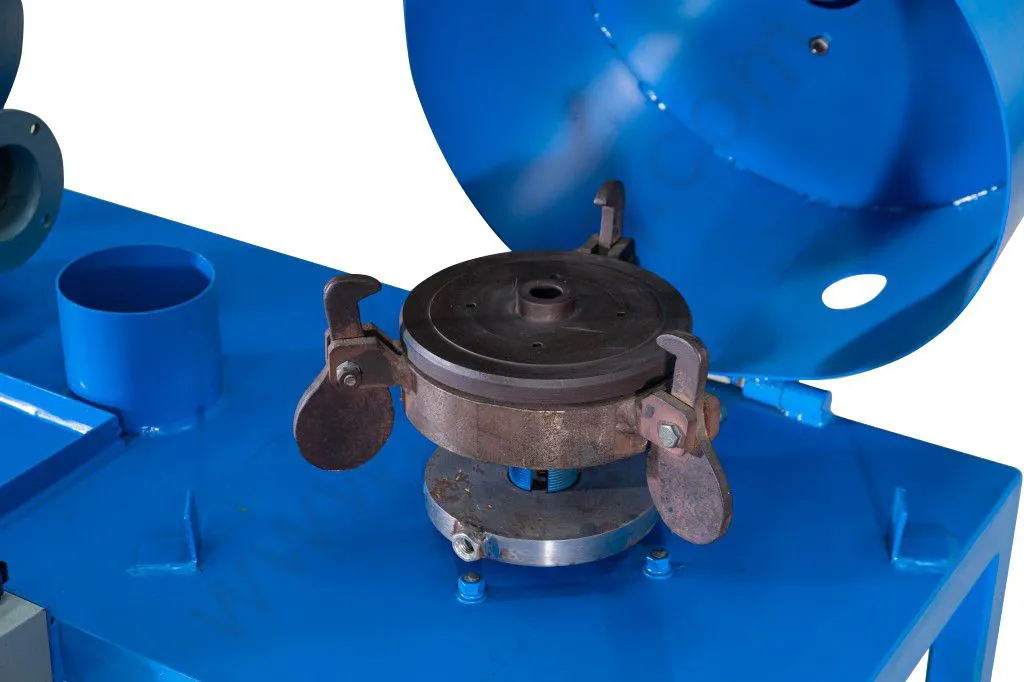

 image.png1.Mold: customized according to customer products

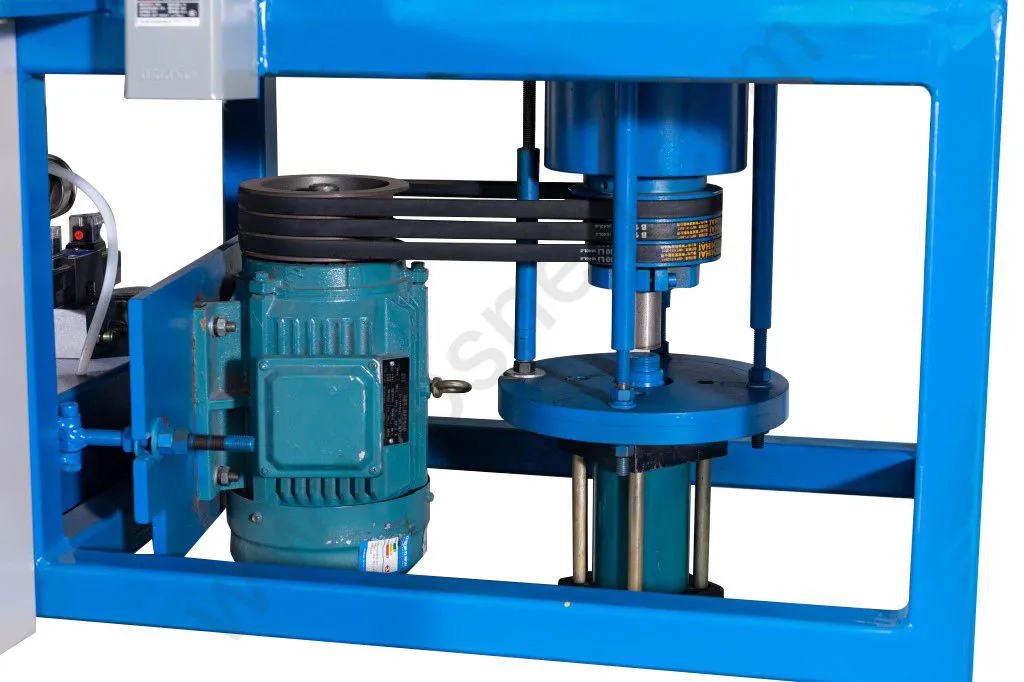

 image.png2.Pure copper motor, long service life
 image.png3.Equipped with hydraulic brake, it can stop in seconds to improve production efficiency. Hydraulic rotary cylinder, effortless ejection of products
 image.png4.Touch screen operation panel, plus necessary physical buttons
 image.png5.Standard hydraulic system, the pressure of each unit can be adjusted
 image.png6.Pure copper hydraulic motor, durable
