Special lathe for rice cooker heating plate

Product Description

A hydraulic lathe is a lathe that uses a hydraulic energy source to feed the tool. The hydraulic lathe is equipped with 2~3 independent tool holders, each of which can accommodate 1~2 tools. The hydraulic cylinder drives the X-axis and Y-axis to move the tool holder according to the specified instructions to perfectly achieve fast forward, slow forward , fast reverse and other movements . Multiple tools work at the same time, with high production efficiency, which is 3 times the efficiency of ordinary lathes.

Basic Information


Before processing  → After processing



product nameTwo-axis hydraulic lathecontrol methodPLC
modelOSN-250energy sourceHydraulic drive
After-sales serviceone yearMaximum processing length40mm (can be customized)
Transmission typeX/Y axis hydraulic cylinderMaximum rotation diameter400mm (can be customized)
guideTaiwan Bank of ChinaProduct SizeL2000*W600*H1500 mm
PackingWooden box or film packageWeight (Kg)About 1000KG
Customs Registration Code44289600P9Production Capacity20 units/month

Application Areas

Our 2-axis hydraulic lathe is a special lathe used for cutting heating plates of rice cookers, ceiling fan rotors, upper and lower covers of aluminum ceiling fans and other related products. It can feed multiple knives at the same time to save processing time.


Features and benefits

  1. The frame and the fuel tank are designed in one piece and are made of bent and welded steel plates. After high-temperature annealing and vibration, stress is eliminated to ensure that the frame is stable and not deformed.

  2. The fuselage is integrally cast from HT250 castings, and has been exposed to the sun and rain for natural aging and high-temperature annealing to eliminate stress. Then it goes through the gantry machining center and is processed in one go to ensure the concentricity, parallelism and verticality of the fuselage.

  3. It adopts Japanese Mitsubishi PLC control and is easy to operate.

  4. Using Taiwan's silver guide rail, it has high precision and long service life.

  5. The tool adjustment method is a dial plus an adjustment screw, which can quickly complete tool setting production.

  6. The speed is up to 2300r/min, and the speed can be adjusted through the frequency converter.

  7. The brake uses a brake resistor to automatically brake and implement rapid braking.

  8. The lubrication system uses an electric lubrication pump to automatically lubricate at regular intervals to ensure the service life of the guide rails.

  9. Each unit has an independent hydraulic oil gauge, and the required pressure can be adjusted individually according to needs. The adjusted pressure is clearly visible.

  10. Adopt CNC special sleeve spindle and hydraulic chuck, the clamping force is stable.


Product Parameters

nameModel/Specification
power supplyAC380V three-phase 50/60HZ (customizable)
X-axis125mm stroke, hydraulic cylinder drive
Y-axis125mm stroke, hydraulic cylinder drive
Spindle motor5.5KW
Hydraulic motor1.5KW
Frequency Converter7.5KW inverter
Spindle speed0~2300r/min
Hydraulic chuckZHONGSHI hydraulic chuck 3P-08A6
Hydraulic rotary cylinderRK-125N
Maximum processing diameter250mm (customizable)
Maximum processing length40mm (customizable)
X-axis maximum travel125mm (slow speed stroke ≥ 40mm)
Maximum travel of Y axis125mm
X/Y axis fast moving speed10m/min
X/Y axis slow moving speed3m/min (speed adjustable)
X/Y repeat positioning accuracy±0.01mm
Spindle mirror runout±0.01mm
Knife mounting structureManual knife arrangement (with knife adjustment dial)
Maximum number of knives5

Equipment details pictures

 image.pngSpecial hydraulic chuck with adjustable clamping forceimage.png With dial adjustment , the knife adjustment speed is fast, and there is no need to repeatedly check the size
 image.pngCNC turning tool , no need to weld the turning tool image.pngPLC Control+ Inverter adjusts motor speed
 image.pngExternal inverter panel for easy adjustment  image.pngElectric lubrication pump
 image.pngPhysical button image.pngPressure gauges for each unit, the adjusted pressure is clearly visible

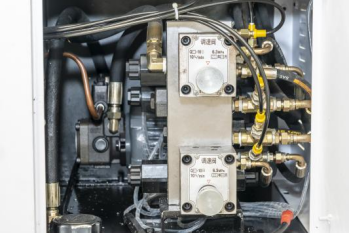

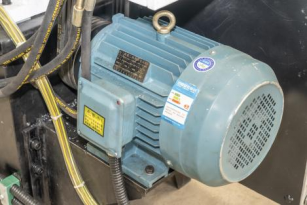

 image.png5.5Kw pure copper motor , long service life and strong power image.pngStandard hydraulic system
 image.pngHydraulic Cylinder image.pngDipstick
