Product Description

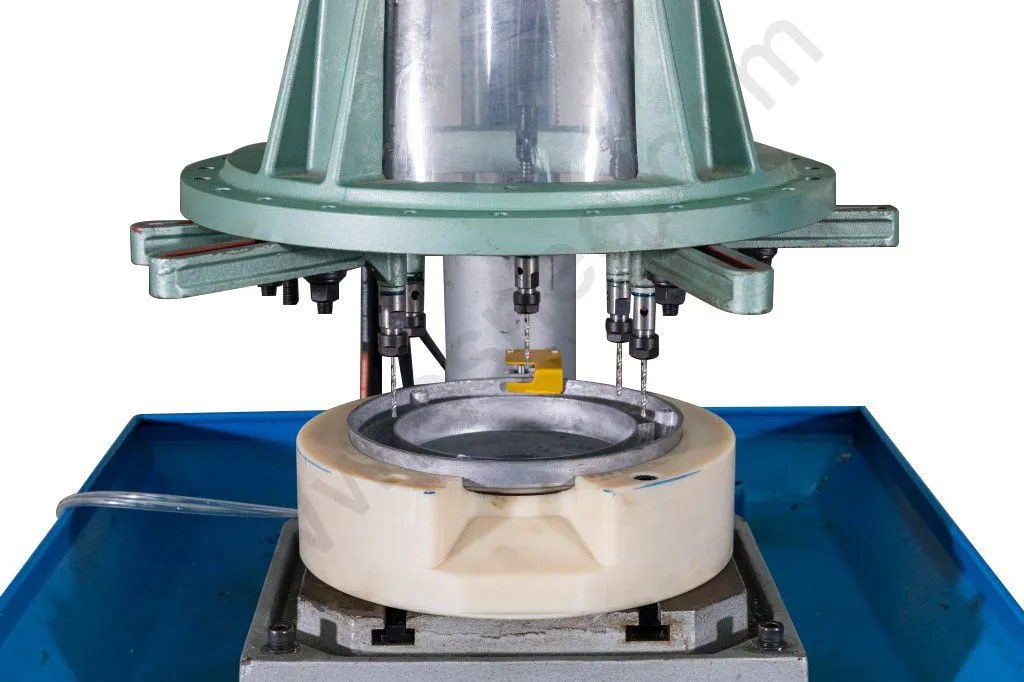

Hydraulic automatic multi-axis drilling machine refers to a device that drives the multi-axis device under the drive of hydraulic pressure and V-belt, and can drive multiple chucks at one time to drill multiple holes at the same time. The speed can be adjusted by the pagoda-shaped pulley, and the hydraulic spindle drives the multi-axis device to rise and fall. Then the kinetic energy is transferred to the chuck through the multi-axis device to achieve the purpose of drilling multiple holes at the same time, reducing labor intensity and improving work efficiency.
Basic Information
Before processing →After processing
| product name | Hydraulic automatic multi-axis drilling machine | control method | Automatic/manual loading and unloading |
| model | OSN-8516 | Energy Source | Electricity |
| After-sales service | One year | Maximum processed product diameter | 250mm (customizable) |
| Transmission type | V-belt | Maximum drilling diameter | ᴓ 3.3-8 ~ ᴓ 5.1-10 (customizable) |
| Up and down drive | Hydraulic | Packing | Wooden box or film package |
| Customs Registration Code | 44289600P9 | Production Capacity | 30 units/month |
Application Areas
Our automatic multi-spindle drilling machines are suitable for heating plates, ceiling fan upper and lower covers, and products that require multi-hole tapping.
Features and benefits
The frame is made of carbon steel square tube welding design, which is subjected to high temperature annealing and vibration to eliminate stress, ensuring that the frame is stable and not deformed.
Automatic operation is adopted, which is easy to operate.
The speed is adjusted by a pagoda-type pulley .
Hydraulic drives the multi-axis device to automatically rise and fall, improving work efficiency.
You only need to manually put the product into the fixture, and after one-button start, the machine will work automatically with high production efficiency.
The adjustable swing arm can freely adjust the drilling position within the effective range according to the hole position.
The drilling depth can be freely adjusted within the effective range according to the required processing depth.
The cooling water nozzle can be adjusted freely according to needs.
It can run at high speed for a long time and is strong and durable.
Support customized equipment for drilling and tapping of turntable, slide, servo, square multi-axis and circular multi-axis .
Product Parameters
| project | Model OSN--8516 | Model OSN-D20 |
| power supply | AC380V three-phase 50/60HZ (customizable) | |
| Spindle motor | 1.5Kw | 2.2Kw |
| Spindle speed | 540/855/1440 r/min | 500/810/1200/1800 r/min |
| Hydraulic motor | 0.75Kw | 1.1Kw |
| Product cooling method | Water Cooling | Water Cooling |
| Water pump motor | 120W | 120W |
| Head adjustable up and down travel | 200mm | 300mm |
| Spindle diameter | 50mm | 65mm |
| Column outer diameter | 70mm | 100mm |
| Spindle Morse taper | B16 | MT2 |
| Effective stroke of tapping | 60mm | 80mm |
| Number of processing axes | ᴓ 3.3-8 axis | ᴓ 5.1-10 axis |
| working desk size | L 600x W800x H1900mm | L700x W850x H2000mm |
| Weight (kg) | About 210kg | About 240kg |
| Spindle center point to vertical beam end face | 200mm (customizable) | 250mm (customizable) |
Accessories pictures
  |  |  |  |
 |  |  |  |
